Aluminium Alloy Angle Bar 6061

Aluminium Alloy Angle Bar 6061

Aluminium Alloy Angle Bar 6061

- 6061 T6

Aluminium Alloy Angle Bar 6061

Chemical Composition

%	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
Min	0.40		0.15		0.80	0.04
Max	0.80	0.70	0.40	0.15	1.20	0.35	0.25	0.15	Remainder

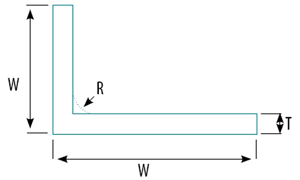

Thickness (T)	Width (W)	Length (L)	Kgs / Mtr
2.0mm	25.40mm	6000mm	0.258
3.0mm	12.70mm	4880mm	0.182
3.0mm	15.88mm	4880mm	0.245
3.0mm	19.05mm	6000mm	0.285
3.0mm	25.40mm	4880mm / 6000mm	0.377
3.0mm	31.75mm	4880mm / 6000mm	0.476
3.0mm	38.10mm	4880mm / 6000mm	0.594
3.0mm	44.45mm	4880mm	0.696
3.0mm	50.80mm	4880mm / 6000mm	0.776
3.0mm	63.50mm	4880mm	1.008
3.0mm	76.20mm	4880mm	1.215
3.0mm	101.6mm	4880mm	1.573
4.5mm	25.40mm	4880mm / 6000mm	0.565
4.5mm	31.75mm	4880mm	0.719
4.5mm	38.10mm	4880mm / 6000mm	0.875
4.5mm	50.80mm	4880mm / 6000mm	1.185
4.5mm	63.50mm	4880mm / 6000mm	1.495
4.5mm	76.20mm	4880mm	1.803
4.5mm	101.6mm	4880mm	2.424
5.0mm	50.80mm	6000mm	1.310
6.0mm	25.40mm	4880mm	0.729
6.0mm	31.75mm	4880mm	0.934
6.0mm	38.10mm	4880mm / 6000mm	1.125
6.0mm	44.45mm	6000mm	1.326
6.0mm	50.80mm	4880mm / 6000mm	1.530
6.0mm	63.50mm	4880mm / 6000mm	1.938
6.0mm	76.20mm	4880mm / 6000mm	2.381
6.0mm	88.90mm	4880mm	2.793
6.0mm	101.6mm	4880mm	3.209
6.0mm	152.4mm	6000mm	4.850
8.0mm	25.40mm	4880mm	0.908
8.0mm	40.00mm	4880mm	1.561
8.0mm	50.80mm	4880mm	2.030
8.0mm	63.50mm	6000mm	2.535
8.0mm	76.20mm	4880mm	3.133
8.0mm	101.6mm	4880mm	4.237
9.0mm	50.80mm	4880mm	2.260
9.0mm	63.50mm	4880mm	2.881
9.0mm	76.20mm	4880mm	3.500
9.0mm	101.6mm	4880mm	4.741
9.53mm	127.0mm	6000mm	6.075
* 9.53mm	152.4mm	4880mm	7.731
12.0mm	50.80mm	4880mm	2.915
12.0mm	63.50mm	4880mm	3.743
12.0mm	76.20mm	4880mm	4.569
12.0mm	80.00mm	6000mm	4.821
12.0mm	101.6mm	4880mm	6.223
12.0mm	127.0mm	4880mm	7.877
12.7mm	152.0mm	4880mm	10.063
